Highly recommended by Avenger Security team, way easier to configure than Ubiquity Point to Point, better chipet configuration.
- High Power Indoor/Outdoor CPE with Qualcomm® Atheros Chipset - Range up to 6 miles away with line of sight
- Can be used to connect remote IP cameras to existing NVR’s / DVR’s - Supports up to 300Mbps
- Utilizes the 5.8Ghz Wi-Fi frequency, avoiding the congested 2.4Ghz bandwidth in use on most Wi-Fi today.
- Dual 14dBi antennas
- Supports the following operation modes: Bridge, Access Point, Router and Repeater
- Supports providing PoE power to a single IP camera attached to CPE
- Includes 48V PoE power injector which allows for powering CPE from up to 330ft. away
- LEDs provide information about system status and signal strength for alignment in Bridge mode
- Hardware Reset button
- Outdoor Rated down to -40°F
- Supports Pole, Wall or Rack Mounting

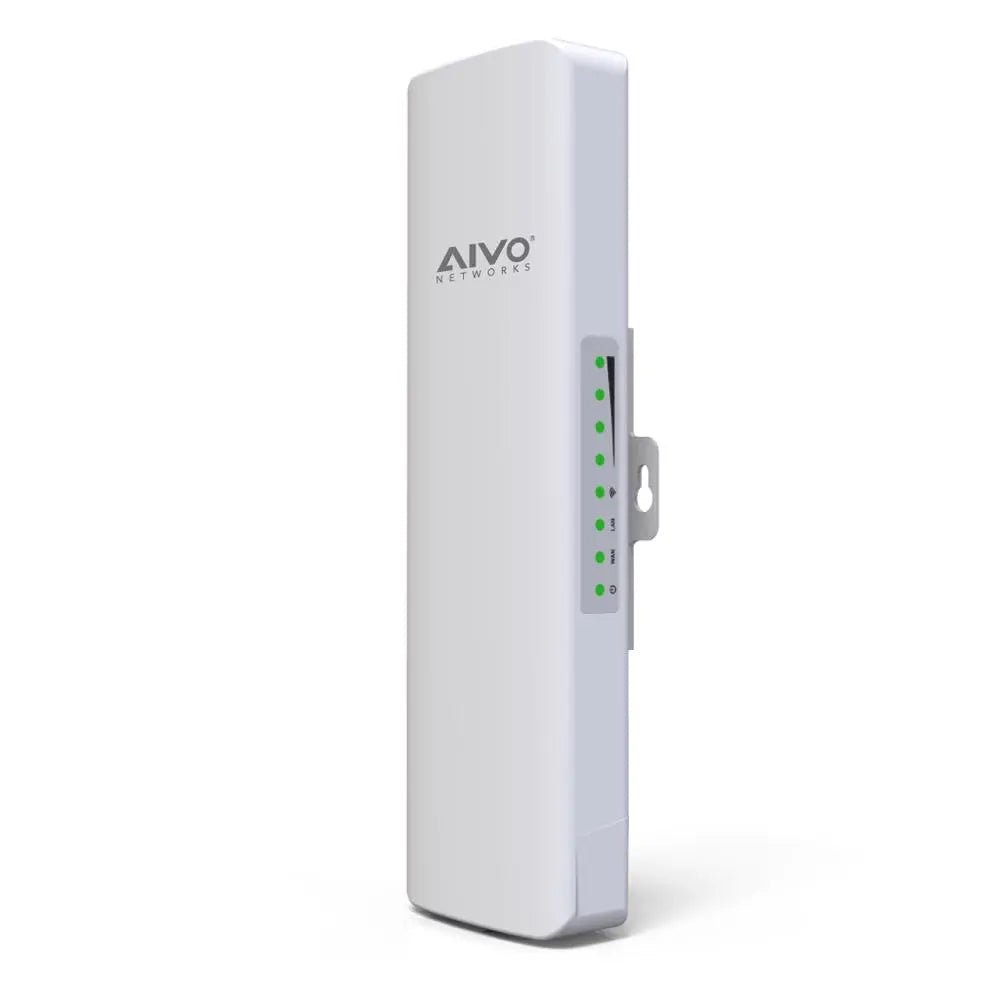

The AIVO ANCP3005Q AVYCON High Power Indoor/Outdoor CPE, the ultimate solution for sending network signals up to 5 miles. This product is a top-notch, high power device that guarantees seamless connectivity both indoors and outdoors. Equipped with cutting-edge features and advanced technology, this CPE is designed to provide unmatched performance and reliability.
Whether you need to establish a reliable network connection for your home or business premises, this product has got you covered. The AIVO ANCP3005Q AVYCON High Power Indoor/Outdoor CPE is an ideal choice if you are looking for top-notch equipment that can handle even the most demanding applications with ease. With its durable construction and robust design, it can withstand harsh weather conditions while maintaining excellent signal strength. This product comes with an easy-to-use interface that makes it easy to set up and use. Its compact size makes it perfect for both indoor and outdoor installations without compromising on signal strength or quality. In conclusion, if you're looking for a reliable high-power device that boasts excellent performance both indoors/outdoors without any complications of setting up then look no further than the AIVO ANCP3005Q AVYCON High Power Indoor/Outdoor CPE!
The AIVO ANCP3005Q AVYCON High Power Indoor/Outdoor CPE, widely recognized for its durability and superb functionality, provides a comprehensive video surveillance solution. This high-powered device acts as a crucial component in any security system set-up.
The AIVO ANCP3005Q AVYCON outdoor CPE is built to withstand the elements, while the high power allows for clear, uninterrupted video feeds, making it ideal for indoor and outdoor setup. This high-grade video surveillance tool promises not only outstanding performance but also offers ease of installation and usage.
With the AIVO ANCP3005Q AVYCON High Power Indoor/Outdoor CPE, surveillance is made simpler and smarter. It's high time you set the standard for security with this top-notch AIVO CPE.
Specifications
| Description |
ANCP3005Q |
| CPU |
Qualcomm AR9344 560Mhz CPU
SE2576L PA Chipset – 64MB DDR2 / 16MB SPI |
| Antenna |
Integrated Dual 14dBi Antennas |
| Wi-Fi Standards |
IEEE802.11a/an |
| RF Output Power |
200mW (23dBm) |
| RF Sensitivity |
-96dBm |
| RF Frequency |
802.11a/n: 5.180Ghz – 5.825Ghz |
| Bandwidth |
300Mbps |
| Physical Ports |
1 x 10/100 Mbps WAN Ethernet Port
1 x 10/100 Mbps LAN Ethernet Port
1 x Toggle switch for PoE output for IPC
1 x Reset Button |
| LED Indicators |
Power / WAN / LAN / Wi-Fi
Level Signal Strength |
| Power |
PoE 802.3at/af
Adapter: 48V PoE Power Adapter |
| Power consumption |
<8W |
| Installation Methods |
Pole Mounting, Wall Mounting or Rack Mounting |
| Product Dimensions |
10.2” x 3.1” x 2.1” (262mm x 80mm x 53mm) |
| Net weight |
0.7lbs |
| Working Environment |
-40˚F ~ 131˚F / 10% ~ 90% RH, Non-condensing |
| Storage Environment |
-58˚F ~ 167˚F / 5% ~ 90% RH, Non-condensing |
Contents
| • CPE |
• Power Cord |
| • Stainless Cable tie |
• Installation Guide |
