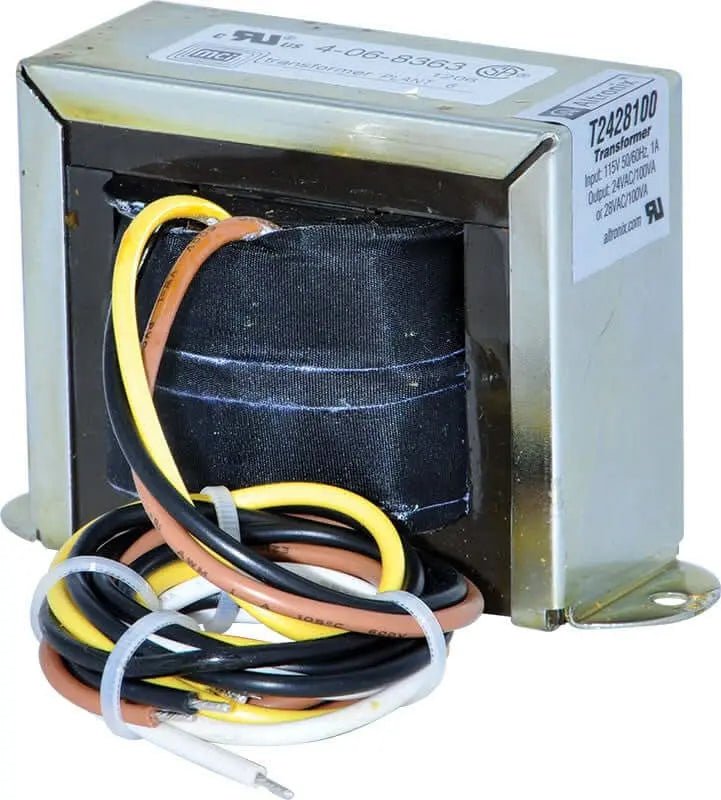

Altronix OPEN FRAM TRANSFORMER Part #T24281000

Altronix OPEN FRAM TRANSFORMER Part #T24281000

The AC Power Supply is configured with Altonix SMP3 & SMP5 AC/DC Power Supply for electronic access control. This product is typically sold with professional installation.

Altronix T2428100 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

  • Input
    • 115VAC 50/60 Hz, 1A.
  • Output
    • 24VAC/100VA (4A) or 28VAC/100VA (3.5A) supply current.
  • Temperature
    • Operating 0° C to 49° C (32° F to 120° F).
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 52 BTU/Hr.
    • System AC input VA requirement: 115VA.
  • Dimensions (approximate):
    • 4.25"W x 2.5"L x 2.6"H (108 mm W x 64 mm L x 66 mm H).
    Weights (approximate):
    • Product Weight: 3.15 Lbs. (1.4 kg).
    • Shipping Weight: 3.8 Lbs. (1.7 kg).
