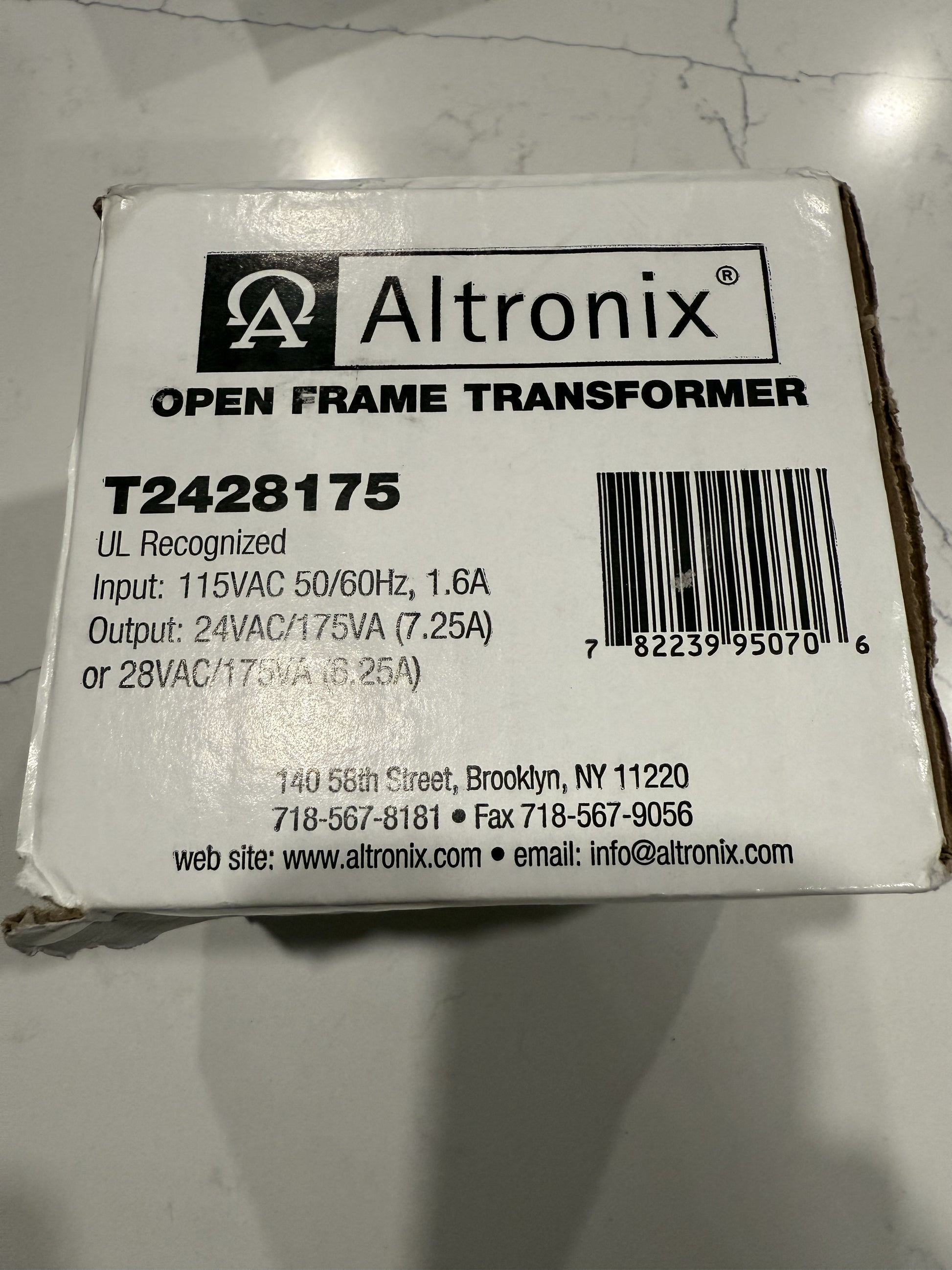

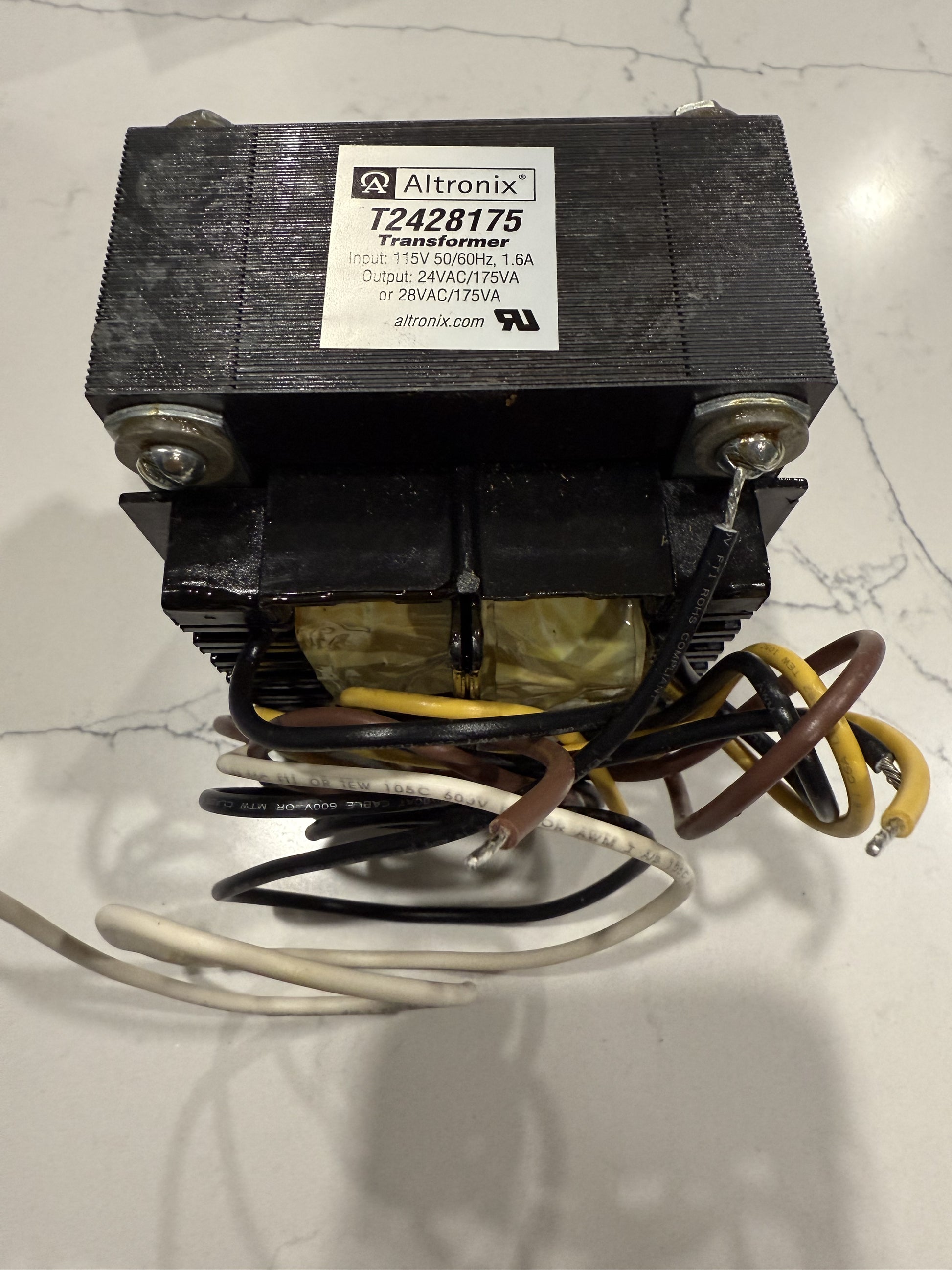

Altronix T2428175 Transformer

Altronix T2428175 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

T2428175 Open Frame Transformer, 24/28VAC @ 175VA, 115VAC

• Input

  • 115VAC 50/60 Hz, 1.6A.

• Output

  • 24VAC/175VA (7.25A) or 28VAC/185VA (6.25A) supply current.

• Temperature

  • Operating 0° C to 49° C (32° F to 120° F).
  • Storage - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.): 90 BTU/Hr.
  • System AC input VA requirement: 184VA.
