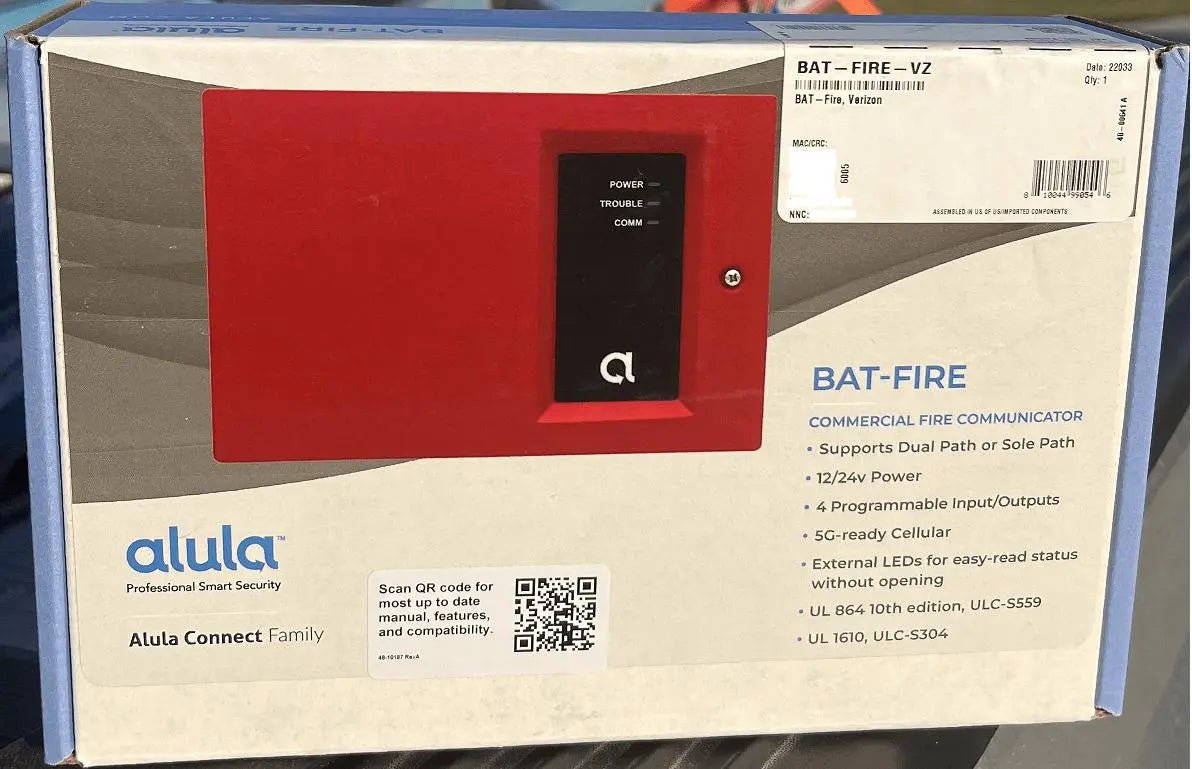

Alula BAT - Dual Path Commercial Fire Alarm Communicator IP/Cellular

Discount on product can be applied with service. Please contact Avenger Security for more information.

For System Integrators who want a versatile fire communicator, the universal BAT-Fire is equipped with dual Tip & Ring Dial Capture and four programmable inputs/outputs with dual path IP and LTE-M cellular technology, which allows system integrators to save money, maximize install flexibility and skip the 4G cellular sunset.

Verizon and AT&T modules available

Why Choose BAT-Fire?

Reduce configuration time - Near-universal compatibility with FACPs with dialer-capture and point-capture.

Increase RMR - Monitor multiple auxiliary building system functions with four programmable inputs and outputs.

Minimize install complexity - Operate at either 12V or 24V and use minimal current to ensure your backup power requirements can be met.

Simplify your day - One communicator that works with all panels that use either dialer-capture or point-capture.

Meet local regulations - Can be configured to comply with any of the most recent UL & NFPA guidelines.

Maximize flexibility - Sole path cellular, IP, or dual-path communications.

Save money - Eliminate the inevitable LTE/4G sunset by installing a fire communicator that’s 5G-ready.

Reduce service hassles - Remote programming, troubleshooting and managed over-the-air firmware upgrades.

• Supports 12V and 24V FACPS
• Sole path IP and dual path cellular communications
• Alarm capture via phone line interface or standard alarm outputs
• CAT-M1 cellular is 5G-ready
• Supports Contact ID reporting format
• Trouble event detection and reporting
• Four programmable input/output points
• At-a-glance system status via front panel LEDs
• Certifications: UL864 10th Edition, ULC-S559, UL1610, ULC-S304

Product Specs:

Physical Housing Dimensions: 8.6 x 5.8 x 2.2 in

Weight: 13.2 oz (372.9 g)

Cover Securing Screw #6 screw (included)

Mounting Fasteners: #6 screws and wall anchors (included)

Antenna External (included)

Reported Indications Cover Tamper, Inputs/Outputs, Inputs, PGM1, PGM2, PGM3, PGM4, Input Ratings, 4.7k pullup to 12VDC or 24VDC

Outputs, PGM1, PGM2, PGM3, PGM4, Phone 1,Phone 2

Output Ratings, Open collector outputs, Shunt up to 75mA into ground

Models

BAT-Fire, Verizon™

BAT-Fire, AT&T ™

Environmental Operating Temperature: 32°F to 120°F (0°C to 48.9°C)

Maximum Humidity - 93% non-condensing relative humidity

Electrical Power Supply Options - FACP Regulated Supply or UL1481 Listed Power Supply such as Altronix AL300

Current Draw

154mA (Standby) 207mA (Max) @12VDC

109mA (Standby) 161mA (Max) @24VDC

Input Voltage 10V-28VDC

24hr Battery Backup Requirements

12VDC requires 3.7Ahr

24VDC requires 2.62Ahr

Central Station Receivers Bosch Conettix: D6600, ITS-D6686-UL, D6100IPv6

Regulatory Certification Listings: UL 864 10th Edition, ULC-S559, UL 1610, ULC-S304
