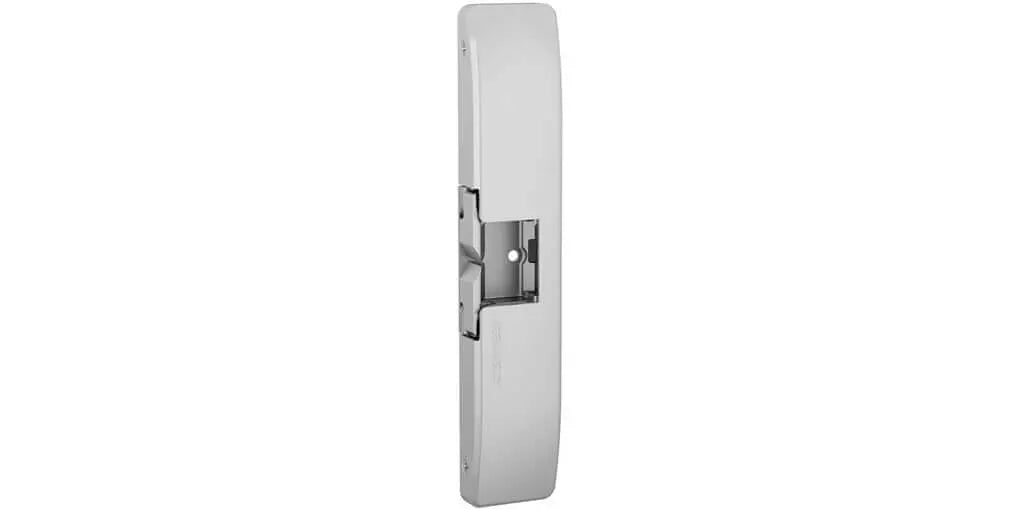

The HES 9600Â Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch. All components are completely encased within its 3/4" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. The outdoor rated HES 9600 is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
The HES 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
Frame application
Electrical
- .45 Amps at 12 VDC continuous duty
- .25 Amps at 24 VDC continuous duty
Standard Features
- Installs in metal or wood frames
- Separate base and cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 2,000 lbs.
- Dynamic strength 120 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Dual voltage 12 or 24 VDC
- Horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates up to 3/4" Pullman latch
- Five-year limited warranty
Optional Features
- LBM - Latchbolt monitor
- LBSM - Latchbolt strike monitor
Finishes
- 630 - Satin stainless steel
The ASSA ABLOY HES 9600 Electric Rim Strike is the epitome of advanced access control solutions. Designed with cutting-edge technology, this electric rim strike is engineered to provide top-notch security features that cater to modern demands. When considering access control solutions, security and dependability are critical, and the HES 9600 excels in both these aspects. This electric rim strike is specifically created for rim exit devices, offering a secure and reliable mechanism to control entry to restricted areas.
One of the remarkable features of the HES 9600 is its versatile compatibility with various door materials including metal and wood. This ensures that regardless of the existing setup, the installation of the HES 9600 will be seamless and efficient. The robust construction of this electric rim strike makes it resistant to tampering, offering an extra layer of security. It is designed for rigorous use, ensuring longevity and minimal maintenance.
In terms of functionality, the HES 9600 stands out with its fail-safe/fail-secure mode, giving the flexibility to tailor security settings according to specific needs. The fail-safe mode allows the door to be opened during power failure, ensuring safety during emergencies, while the fail-secure mode keeps the door locked to prevent unauthorized access. This adaptability makes the HES 9600 a preferred choice for various applications including commercial buildings, educational institutions, and healthcare facilities.
Moreover, the HES 9600 Electric Rim Strike is compatible with various access control systems, offering seamless integration that enhances overall building security. The sleek design ensures that it does not impart any ungainly appearance to the doors, retaining the aesthetics of the entry points. The ease of use is also enhanced by its non-handed design, accommodating both left and right-handed doors without necessitating modifications.
To add another layer of security, the HES 9600 comes with a built-in preload capability, which ensures stable operation even under pressure. This feature is especially crucial in high-traffic areas where doors are frequently used and might be subject to constant force. Alongside its security measures, the HES 9600 is energy-efficient, ensuring that it does not significantly increase operational costs while maintaining security.
With the demand for reliable and effective access control solutions growing, the HES 9600 Electric Rim Strike by ASSA ABLOY stands as a benchmark. Its combination of advanced technology, robust construction, and flexible functioning ensures that it meets the stringent requirements of modern security needs. Investing in the HES 9600 means choosing a product that prioritizes safety, reliability, and efficiency, offering peace of mind to facility managers and building owners. Whether you are upgrading existing security systems or setting up new installations, the HES 9600 is a choice that guarantees exceptional performance and durability.
