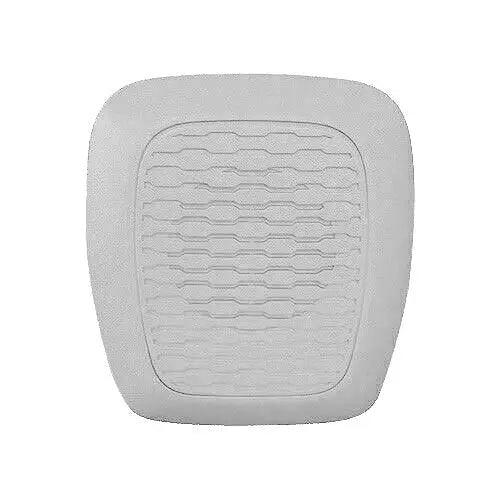

Potter LFH-24W LFH Series Low Frequency Audible Sounder, White

Potter LFH-24W LFH Series Low Frequency Audible Sounder, White

Regular price $62.73 USD
Regular price Sale price $62.73 USD
Sale Sold out
Shipping calculated at checkout.

Potter LFH-24W LFH Series Low Frequency Audible Sounder, White

The Potter LFH-24W is in a Series is a high quality, low profile, audible appliance designed to meet the NFPA 72 requirements to install low frequency (520Hz) signaling in sleeping rooms.

The LFH horn offers a 520Hz square wave, temporal 3 tone. A jumper selection is available for normal or loud decibel tone. A temporal 4 pattern is available when used with the Potter GTSM Synchronization Control Module.
The LFH is equipped with a universal 4" metal mounting bracket which incorporates the popular Super-Slide® feature that allows the installer to easily pre-wire the system and test for supervision. The product also features a locking mechanism that secures the signal to the bracket without showing any screws and the Checkmate® - Instant Voltage Verification Feature which allows the installer to check the voltage drop, current draw, and match against the blue print.

Main Features
  • Super-Slide Bracket - Ease of Supervision Testing
  • Wall or Ceiling mount
  • Checkmate - Instant Voltage Verification
  • Synchronize horn with Potter GTSM module
  • Produces a 520Hz square wave, temporal 3 tone
  • Jumper selection for normal or loud dBA
  • Temporal 4 pattern available when used with GTSM module
  • Tamperproof re-entrant style grill and locking (Optional)
  • Faceplate available in red or off white
  • 5 year warranty
General Information
Name: Potter LFH-24W LFH Series Low Frequency Audible Sounder, White, Potter Electric Signal, LLC
Category: Potter Electric Signal, LLC, Fire, Fire Notification Appliances, Sounders
