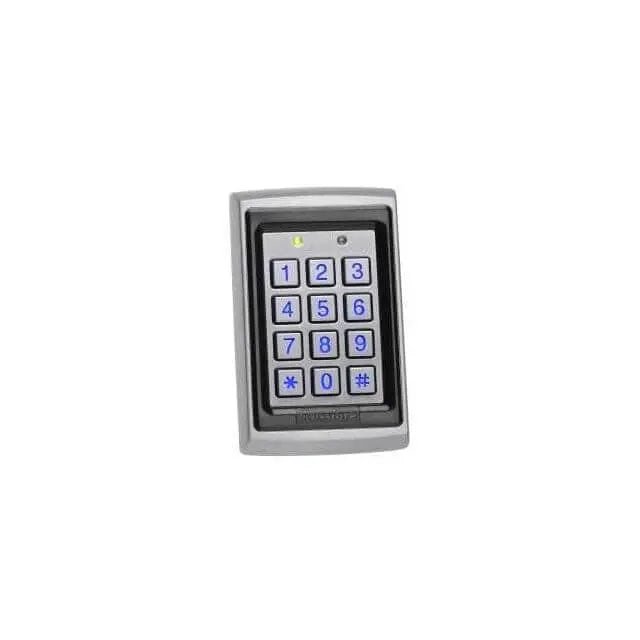

ROSSLARE AYC-Q64B
Anti-Vandal US Single Gang Backlit PROX + PIN Reader – Convertible
Part of the convertible line of readers/controllers, this unit can be operated as an outdoor backlit keypad and proximity reader that connects to any standard controller, or can convert into a fully featured, 500-user standalone controller when connected to Rosslare’s PS-x25T family of intelligent power supply/relay units. This unit provides a most effective solution for indoor and outdoor access systems where PIN & proximity credentials are required. This attractive model features unique shiny blue illuminated metal keys on a metallic, epoxy filled, sealed housing.
Part of the convertible line of readers/controllers, this unit can be operated as an outdoor backlit keypad and proximity reader that connects to any standard controller, or can convert into a fully featured, 500-user standalone controller when connected to Rosslare’s PS-x25T family of intelligent power supply/relay units. This unit provides a most effective solution for indoor and outdoor access systems where PIN & proximity credentials are required. This attractive model features unique shiny blue illuminated metal keys on a metallic, epoxy filled, sealed housing.
MAIN FEATURES
Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, highly-visible blue backlit keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User friendly menu, based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output
Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data)
Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays PROFESSIONAL GRADE FEATURES
8 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 3x4 Matrix
Supports Wiegand or Clock & Data transmission formats
Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
60 cm (23.6 in.) shielded interface cable
SPECIFICATIONS ELECTRICAL SPECIFICATIONS
Operating Voltage Range Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies
Input Current Standby: 90 mA at 12 VDC Maximum: 130 mA at 16 VDC
Proximity Card Reader Maximum read range*: 45 mm (1.8 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM cards * Measured using Rosslare Prox Card AT-R14 or equivalent. Range also depends on electrical environment and proximity to metal.
Tamper Optical back tamper sensor, O.C. active low, 32 mA max. sink current OPERATIONAL SPECIFICATIONS
Keypad 3x4 keys for local programming and 4- to 8-digit PIN codes entry
Design Epoxy potted, fully-sealed in a rugged metal enclosure, blue backlit metal keys, highly strong construction. Suitable for extremely harsh environments.
Audio/Visual Two tri-color LED indicators, built-in buzzer READER MODE LED Control Dry contact, N.O.
Facility Code Programmable
Read Card Format Selectable Wiegand 26-Bit or Clock & Data
PIN Code Formats 8 selectable formats, from 1- to 8-digit length PIN codes CONTROLLER MODE (available with PS-x25T series intelligent power supplies only)
Capacity 500 users, dual code/card or code + card each
User Levels Normal, Secure, Master
Security Modes Normal, Bypass, Secure
Outputs Lock Strike output Auxiliary output (PS-x25T series)
Inputs REX (Request-to-Exit) Auxiliary/door monitor with 10 programmable modes ENVIRONMENTAL SPECIFICATIONS
Operating Environment All weather, indoor and outdoor use, meets IP65
Operating Temperature Range -35°C to 66°C (-31°F to 151°F)
Operating Humidity Range 0 to 95% PHYSICAL SPECIFICATIONS
Dimensions 120 x 76 x 21 mm (4.7 x 3 x 0.8 in.)
Weight 480 g (1.1 lb)
SYSTEM COMPONENTS AYC-Q64B is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series it automatically converts into a 500-user secure controller. PRODUCT WARRANTY 5-year limited product warranty ABOUT ROSSLARE SECURITY Rosslare Security Products, a division of Rosslare Enterprises Ltd., has been manufacturing high-quality security products since 1980. The company’s three main lines – Access Control, Intrusion Detection and Guard Patrol – together with a growing product range have transformed Rosslare Security into a major worldwide force in security. Rosslare holds itself to the highest standards of customer service and manufacturing (ISO 9001:2008, ISO 14001:2004, ISO 13485:2003). The company complies with the EU Directive 2002/95/EC on Restriction of Hazardous Substances (RoHS)
